  1. Prop types

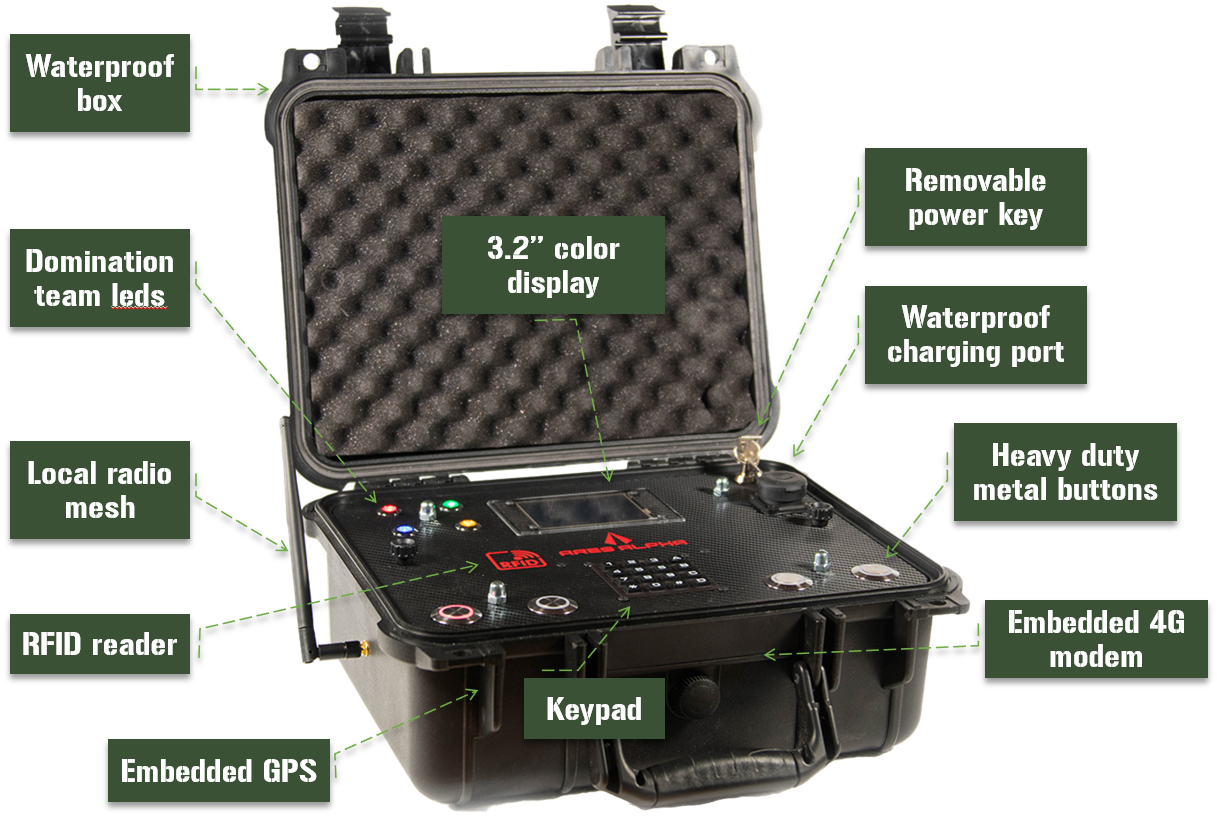

ATB Pro

The Swiss army knife of airsoft & paintball props.

PreviousProp typesNextATB Target Addon

Last updated 1 year ago

  • Multiple game modes: Domination, Bomb, Money factory, Tags collect, VIP transport.

  • 4G connection : Connect to Ares-Alpha servers by using the integrated 4G modem. It requires a SIM card and GSM coverage.

  • Wi-Fi connection: Connect to Ares-Alpha servers by using your own router or hotspot.

  • Fully integrated with Ares-Alpha free app. Check in real-time ATB status, domination zones, bomb ticking, team points, etc.

  • Local radio mesh: Connect multiple ATB’s from the same battlefield. Points from all ATBs will be synced without any online connection to the Ares Alpha servers.

  • Online firmware updates. Constantly updates your ATB for new game modes, external modules integration, etc.

  • Offline mode. Use it offline without any connection to Internet.

  • Advanced web management interface. Use your smart phone to configure all ATB settings.

  • Keep tracking of teams points.

  • Waterproof design. Use the box in any weather conditions as long as the cover it's closed. Check section for more info.

  • Integrated motion sensor. Use it on VIP Transport mode.

  • Integrated RFID reader. Use the tags on Money Factory mode, or Tags Collect mode.

  • Integrated GPS. Your box will be tracked on the map in real-time on Ares Alpha app.

  • Embedded rechargeable batteries. Choose from Mega (48 hours) or Regular (24 hours) packs. Note that battery life it’s depending on the box settings like server refresh interval, game modes, etc.

  • Addon interface: Connect Ares Alpha addons to the ATB Pro, like .

  • Works with 4 teams: Red, Blue, Green and Yellow

Dimensions

35 × 30 × 15 cm

Weight

4 kg
