  1. Configuration and game modes

Local configuration

PreviousConfiguration and game modesNextRemote configuration

Last updated 1 month ago

All Ares Alpha props are fully configurable locally from the built-in web interface and it can be accessed from any smartphone or PC. Configuration interface it's only available if the prop is in Admin Mode.

Depending on your prop type, follow the steps below to enter Admin mode:

  1. Power on the prop.

  2. Type 846637# on the keypad to enter Admin mode.

  3. ATB will restart, and enter Admin mode. On the display you can check the prop serial number.

  4. Connect your phone/PC to the prop wireless network ares-xxxx, where xxxx it's part of the prop serial number. Wi-Fi password it's ares-alpha .

  5. Open a browser and go to http://192.168.4.1

  6. After you made the changes, type again the same code on the keypad to exit Admin mode.

  1. Power on the prop.

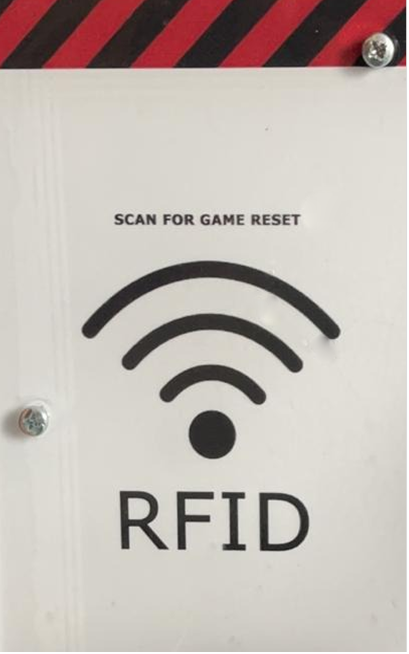

  2. Scan the Black Admin tag to enter Admin mode. RFID reader it's on the top cover.

  3. ATS will restart and and enter Admin mode. The leds will blink in white.

  4. Connect your phone/PC to the prop wireless network ares-xxxx, where xxxx it's part of the prop serial number. Wi-Fi password it's ares-alpha .

  5. Open a browser and go to http://192.168.4.1

  6. After you made the changes, use again the same tag to exit Admin mode

  1. Power on the prop.

  2. Scan the Black Admin tag to enter Admin mode.

  3. Minibox will restart and enter Admin mode. On the display you can check the prop serial number.

  4. Connect your phone/PC to the prop wireless network ares-xxxx, where xxxx it's part of the prop serial number. Wi-Fi password it's ares-alpha .

  5. Open a browser and go to http://192.168.4.1

  6. After you made the changes, use again the same tag to exit Admin mode

  • Power on the prop.

  • Scan the Black Admin tag to enter Admin mode.

  • Minibox PRO will restart and enter Admin mode. On the display you can check the prop serial number.

  • Connect your phone/PC to the prop wireless network ares-xxxx, where xxxx it's part of the prop serial number. Wi-Fi password it's ares-alpha .

  • Open a browser and go to http://192.168.4.1

  • After you made the changes, use again the same tag to exit Admin mode

When players are using any keypad codes (ATB PRO & ATB Mini), they need to type # at the end of each code.

For example, Admin code it's 846637, but you need to type 846637#

Don't forget to press the Save button after you made the configuration changes!

The prop will restart automatically after each save. Especially after restarting the prop, you can loose the wireless connection to it. Check your phone/PC if it's still connected to the prop.
